External login accounts

External logins can be managed only by administrators under Settings > Administration > External login accounts.

Clicking the Add button opens the configuration window for a new login or clicking an existing login opens the configuration window for the login that has already been set up.



Chapters:

  1. Configuring external SAML2 login

  2. Configuring external OAuth2 login

  3. Necessary database adjustments





  1. Configuring external SAML2 login

The login of type 'SAML' in the 446 Plattform identifies users by their chosen login name. The SAML The Security Assertion Markup Language (in short SAML) is a xml framework for sharing authentication and authorization information. It offers procedures to describe and transfer security-related information. registration is thereby suitable for the following application scenarios:

  • Single Sign-on It is (SSO) a property of access control of multiple related, but independent software systems. With this property, a user logs in with a single ID and password to gain access to a connected system or systems without using different usernames or passwords, or in some configurations seamlessly sign on at each system. (SSO, after successfully logging into a web application, a user is automatically eligible to use other applications)

  • Shared transactions (multiple users collaboritng on the same transaction and also share their security information)

  • Authorization services (the communication with a services goes through an intermediate stations, which checks the permissions)

  • Authentication and authorization of users for web applications running a cloud environment

Note:

In Azure AD portal, register your app as enterprise application to benefit from this login type. Further information regarding the configuration settings in Azure AD can be found at Microsoft under SAML authentication with Azure Active Directory and Advanced certificate signing options in a SAML token. Google also provides a step by step tutorial in their help center to Set up your own custom SAML application.

Tip:

Verify the configuration settings of your Microsoft products additionally with the Microsoft Remote Connectivity Analyzer!



After successfully registering up your application at the identity provider of your choice, you are now able to setup an external SAML2 login within the 446 Plattform.

446 external login saml2

Name: choose a meaningful name for your external login.

Warning:

Once a name has been entered, the 446 Plattform automatically generates an 'ACS Url' address according to the name.

Login button text: enter the text that you would like to appear on the login button. If you leave this field blank, the default text will be used.

Description: an additional description can be provided here.

Type: SAML2

Active: select the status of the external login. You are free to activate the login later at any time.

Use on mobile UI: if activated, an additional login button on the login page of the Mobil446 Plattform is available to you.

Assertion Consumer Service (ACS) URL: the address that is being automatically generated by the 446 Plattform based on the name you have entered.

Assertion Consumer Service (ACS) Logout URL (optional): the logout address that is being automatically generated by the 446 Plattform based on the name you have entered.

Certificate: the textual content of the PEM file certificate which was issued by your identity provider for the SAML2 login.

Note:

Download the certificate with the PEM Privacy-Enhanced Mail (PEM) is a de facto file format for storing and sending cryptographic keys, certificates, and other data, based on a set of 1993 IETF standards defining "privacy-enhanced mail." While the original standards were never broadly adopted and were supplanted by PGP and S/MIME, the textual encoding they defined became very popular. The PEM format was eventually formalized by the IETF in RFC 7468.(Wikipedia) file extension by clicking 'Single sign-on' and 'SAML Certificates' in your enterprise application settings in Azure AD. From there, hit the 'Edit' pencil icon and open the context menu (three dots) in the new window.



Open the file with a text editor afterwards. The certificate begins with the string '-----BEGIN CERTIFICATE-----'.

Endpoint: the URL A Uniform Resource Locator, colloquially termed a web address, is a reference to a web resource that specifies its location on a computer network and a mechanism for retrieving it. A URL is a specific type of Uniform Resource Identifier, although many people use the two terms interchangeably. for the login offered by your identity provider (e.g. https://login.microsoftonline.com/{tenant id}/saml2).

Endpoint signout: the signout URL A Uniform Resource Locator, colloquially termed a web address, is a reference to a web resource that specifies its location on a computer network and a mechanism for retrieving it. A URL is a specific type of Uniform Resource Identifier, although many people use the two terms interchangeably. for the logout offered by your identity provider.

EntityId: a unique name (Identifier/Entity ID). This information is being displayed in the 'Single sign-on' settings of your enterprise application in Azure AD within the 'Basic SAML Configuration' container.

Enable auto login: if this checkbox is enabled, the external login will be triggered automatically once a user visits the login page. Technically, requesting the login page of the 446 Plattform redirects you to the login mask of your identity provider. In the event of failure, the user is simply being redirect back to the login page of the 446 Plattform.

Note:

Choosing this option only makes sense if the majority of all users will be using this external login!



  1. Configuring external OAuth2 login

In the first step you register your application at an identity provider. An example setup for Microsoft Microsoft Corporation is an American multinational technology corporation producing computer software, consumer electronics, personal computers, and related services headquartered at the Microsoft Redmond campus located in Redmond, Washington, United States. Its best-known software products are the Windows line of operating systems, the Microsoft Office suite, and the Internet Explorer and Edge web browsers. Its flagship hardware products are the Xbox video game consoles and the Microsoft Surface lineup of touchscreen personal computers. Microsoft ranked No. 21 in the 2020 Fortune 500 rankings of the largest United States corporations by total revenue [...] (Wikipedia)s Azure AD Azure Active Directory (Azure AD) is an Identity & Access Management solution developed by Microsoft in order to connect people with apps, devices and data. is being described in the App registration section.

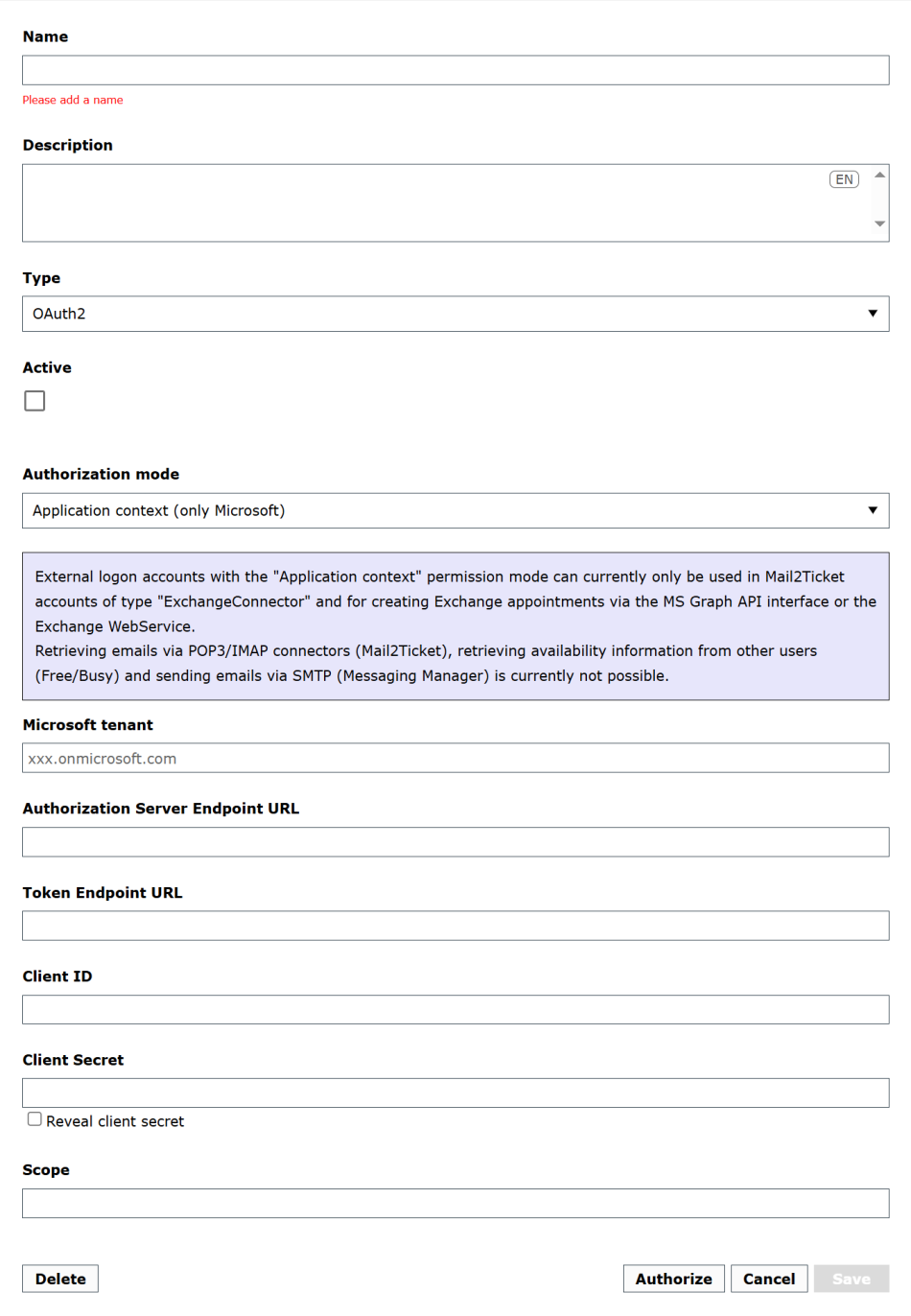

User context: Application context:

Name: choose a meaningful name for your external login.

Description: an additional description can be provided here.

Type: OAuth2

Active: select the status of the external login. You are free to activate the login later at any time.

Authorization mode: this is where the authorization mode for logging in is set. The possible values are User context and Application context.

Microsoft tenant (only Application context): The URI found under the name Primary domain in Azure AD Azure Active Directory (Azure AD) is an Identity & Access Management solution developed by Microsoft in order to connect people with apps, devices and data. must be specified here.

Authorization Server Endpoint URL: the OAuth 2.0 authorization endpoint provided by your identity provider.

Token Endpoint URL: the OAuth 2.0 token endpoint provided by your identity provider.

Client ID: the Application (client) ID of the app you registered at your identity provider.

Client Secret: a secret string that the application uses to prove its identity when requesting a token. (application password, Microsoft). Usually this secret can only be copied once after it's generation and has to be recreated in case of loss.

Scope: enter the API An application programming interface (API) is a way for two or more computer programs to communicate with each other. It is a type of software interface, offering a service to other pieces of software. A document or standard that describes how to build or use such a connection or interface is called an API specification. A computer system that meets this standard is said to implement or expose an API. The term API may refer either to the specification or to the implementation.(Wikipedia) permissions, which you have set for your app at your identity provider, separated with a space, here.

Tip:

Visit Scopes and permissions in the Microsoft identity platform to find more examples on how to set the permission scope for Microsoft related applications. For Google, click on OAuth 2.0 Scopes for Google APIs to get an overview of the available scopes.

Example: https://graph.microsoft.com/Mail.ReadWrite offline_access

Redirect uri (only User context): an automatically, by the 446 Plattform generated address that you have to set at your identity provider for your application afterwards. The integrated OAuthManager (module: IsonetCoreExtended) is hereby responsible for the automatic exchange of the required data with the identity provider.



Explanation of the buttons:

Delete: this will take you to a confirmation dialogue, who asks you, whether you want to remove the whole data record or not.

Authorize: herewith you are able to verify the connection credentials as well as the OAuth settings (especially API permissions) of your application directly. You need the login credentials of your identity provider for the authorization. This authorization process is required to activate the OAuth login and is usually being done once.

Cancel: closes the dialogue window and discards every change made.

Save: closes the dialogue window and saves every change made.



Note:

Usually you only need one login with all the required permissions for Mail2Ticket, Mail delivery and the FreeBusy service.



If you like to use multiple mailboxes with different user accounts, you also need multiple identically configured External Logins which are permitted for the respective authorized user.



For example the authorization must be renewed each time the permissions in Azure AD are changed!



  1. Necessary database adjustments



OAuth2

After successfully setting up your external OAuth2 login, the first thing you get is the ObjectGuid A globally unique identifier (GUID/ObjectGUID)) is a 128-bit number used to identify information in computer systems. In its canonical textual representation, the sixteen octets of a GUID are represented as 32 hexadecimal digits, displayed in five groups separated by hyphens, in the form 8-4-4-4-12. For example: 936DA01F-9ABD-4D9D-80C7-02AF85C822A8 from the TXPE database and the table ExternalLogin.



An example query could look like this:

Copy
SELECT [ObjectGuid], [FriendlyName], [IsActive]
FROM [TXPE].[dbo].[ExternalLogins]
WHERE [Type] = 'OAuth2'



With this ObjectGuid, you configure the OAuth access for the following services:

  • Exchange-Webservices (Free/Busy, TicketToDo, Appointment)

    • Via SQL Structured Query Language is a domain-specific language used in programming and designed for managing data held in a relational database management system, or for stream processing in a relational data stream management system. you setup the value of the keys Txp.Exchange.OAuthExternalLoginGuid and Txp.Exchange.AuthentificationMode within the Configuration of the ClientConfiguration table

      • Key: Txp.Exchange.ProviderType

        Value: ExchangeWebservice or GraphAPI.

      • Key: Txp.Exchange.OAuthExternalLoginGuid

        Value: The ObjectGuid of the (previously) configured external login of type OAuth2.

      • Key: Txp.Exchange.AuthentificationMode

        Value: OAuthAuthorizationCode





  • Bad Messages (SMTP)

    • Via UI In the industrial design field of human–computer interaction, a user interface (UI) is the space where interactions between humans and machines occur. The goal of this interaction is to allow effective operation and control of the machine from the human end, while the machine simultaneously feeds back information that aids the operators' decision-making process. Examples of this broad concept of user interfaces include the interactive aspects of computer operating systems, hand tools, heavy machinery operator controls and process controls. The design considerations applicable when creating user interfaces are related to, or involve such disciplines as, ergonomics and psychology.(Wikipedia) of the 446 Plattform in Settings > Administration > Configuration settings, you setup the value of the keys BadMessageOAuthExternalLoginGuid and BadMessageSmtpAuthMethod (see also Table: Configuration Settings - System)

      • Key: BadMessageOAuthExternalLoginGuid

        Value: The ObjectGuid of the (previously) configured external login of type OAuth2.

      • Key: BadMessageSmtpAuthMethod

        Value: OAuthAuthorizationCode

Note:

All other messaging manager configurations - except 'BadMessageSmtpPassword' - are still necessary.

Note:

No database configuration is required for Mail2Ticket. The configuration is performed under Configuration of email accounts.
